Pot Magnets
Magnet-and-steel-housing assemblies for focused holding at the contact face. Send the diameter, overall height, contact conditions and fixing arrangement.
Holding & mounting
Magnetic Holding Assemblies

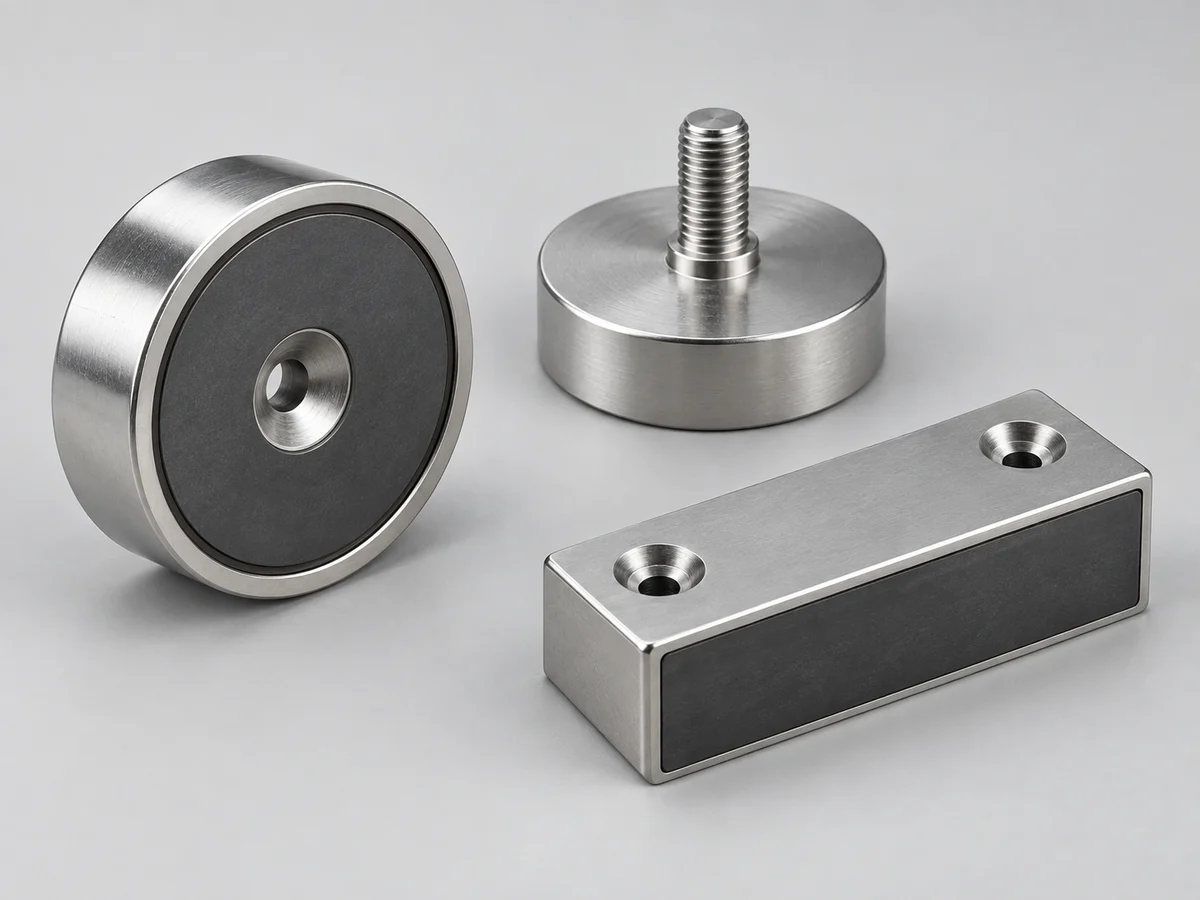

Pot magnets, mounting magnets and custom holding assemblies manufactured and supplied for fixing, positioning and mechanical integration. Define the mounting interface and the working conditions before choosing the assembly.
Request a quoteSend your drawing or describe the application. Specifications are confirmed during review.
Our supply range
Mounting Magnets
Magnetic fixing components with threaded or countersunk interfaces. Specify the thread, engagement, installation direction and the surface being attached.
Custom Holding Assemblies
Drawing-led magnetic holders, brackets and interface geometries. Confirm the enclosure, magnet arrangement, retention method and inspection criteria for your project.
A holding requirement is more than a pull-force number. Contact material, steel thickness, air gap, surface condition and load direction all belong in the specification.
Drawing-led review
What to include in your enquiry
No fixed grade, dimensional tolerance, frequency range or performance rating is implied by this overview. We confirm the specification and acceptance criteria before production.
- Holding duty
- Required normal pull or shear resistance, load direction, vibration and the intended safety margin.
- Contact surface
- Mating material and thickness, coating, surface flatness and any working air gap.
- Mechanical interface
- Assembly drawing, outer dimensions, thread or hole details and installation space.
- Environment and supply
- Operating temperature, moisture or corrosion exposure, quantities and acceptance test conditions.
Common questions
What holding products can you supply?
We manufacture and supply pot magnets, mounting magnets and custom magnetic holding assemblies. The magnet material, housing, dimensions and fixing interface are confirmed to the application.
Is pull force the same as shear resistance?
No. A pull test normal to a specified steel surface does not establish resistance to sliding. State both the load direction and the actual mating conditions for testing.
Can these be used for lifting?
This page does not specify lifting equipment or a rated lifting capacity. Safety-critical or overhead lifting requires a separately engineered and qualified solution; do not use a general holding specification as a lifting rating.
Start with your application.
Share the drawing, operating conditions and quantity with our team.
