MAGNETIC MATERIALS
NdFeB MagnetsMore magnetic power.
Less design space.
High magnetic energy for compact motors, sensors and precision assemblies.
Request an NdFeB ReviewView GradesApplication overview
A high energy product is only the starting point. We review grade, geometry, operating temperature and the magnetic circuit together, then align coating, machining and magnetization with your production requirements.
FORMS & CONFIGURATIONS
Made for Your Design.
Representative product forms. Final geometry, dimensions and material are confirmed against your drawing.
Discs
Ø1–Ø100mm × T0.5–25mm
Review This Form
Blocks
1–200mm × 1–100mm × 1–50mm
Review This Form

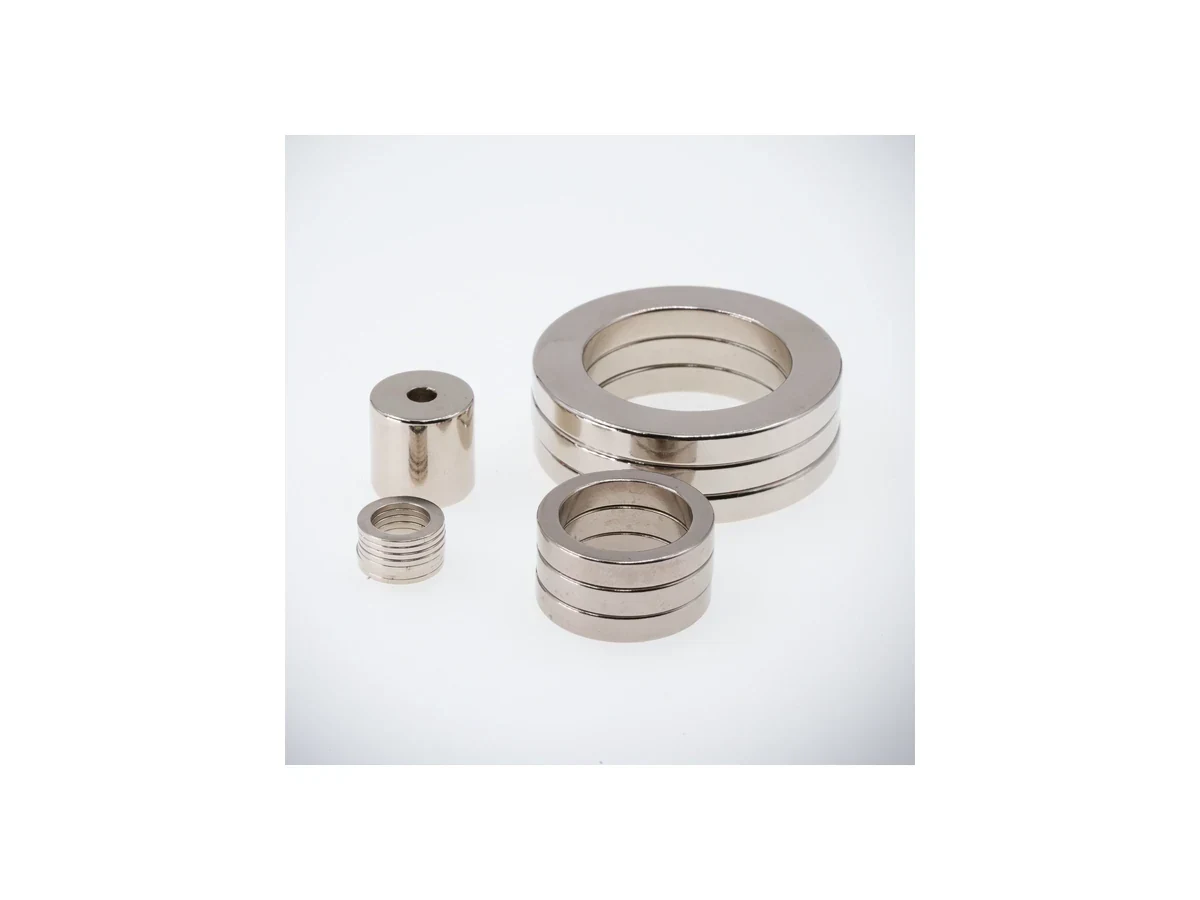

Rings
OD 3–200mm × ID 1–150mm × T 1–30mm
Review This Form
Cylinders
Ø2–Ø50mm × L 2–100mm
Review This FormDESIGN & SELECTION
Select the Grade in Its Working Circuit.
- 01Magnetic circuit
Load line, geometry and demagnetization margin
- 02Thermal duty
Working temperature and thermal cycles
- 03Surface protection
Coating allowance and agreed exposure test
A good fit when
- High flux density in a compact envelope
- Motor, actuator and sensor designs with a defined air gap
- Applications where an engineered magnetic circuit can use the available energy product
- Projects that need a broad range of shapes, orientations and coatings
Check before release
- The grade's maximum working temperature is not a substitute for a thermal design review
- Corrosion protection must match humidity, chemicals, assembly process and edge exposure
- Thin sections, sharp corners and open magnetic circuits can increase irreversible loss risk
- Coating, magnetizing direction and adhesive compatibility should be frozen before PPAP
ENGINEERING REVIEW
Start with the Right Inputs.
A clear specification connects magnetic performance with a practical manufacturing route.
Temperature profile
Provide continuous, peak and dwell temperatures at the magnet, not only the ambient temperature. Include start-up and fault conditions when relevant.
Surface environment
State humidity, salt, chemicals, vacuum, cleaning agents and whether the finished part will be edge-sealed or encapsulated.
Magnetizing and assembly
Show orientation, pole count, adhesive, insertion force, fixturing and any shock or high-speed loads applied after magnetizing.
MATERIAL REFERENCE
Technical Data, Clearly Presented.
Complete technical grade data99 reference rows
99 rows
No matching results. Clear the filter or ask for selection help.
| Grade | Br mT (kGs) | Hcb kA/m (kOe) | Hcj kA/m (kOe) | (BH)max kJ/m³ (MGOe) | αBr %/°C | βHcj %/°C | |
|---|---|---|---|---|---|---|---|
| N35 | 1180-1230 (11.8-12.3) | ≥876 (≥11) | ≥955 (≥12) | 263-287 (33-36) | 0.10-0.124 | 0.65-0.80 | Grade PDF |
| N38 | 1230-1260 (12.3-12.6) | ≥899 (≥11.3) | ≥955 (≥12) | 287-310 (36-39) | 0.10-0.124 | 0.65-0.80 | Material Datasheet |
| N40 | 1260-1290 (12.6-12.9) | ≥912 (≥11.5) | ≥955 (≥12) | 302-326 (38-41) | 0.10-0.124 | 0.65-0.80 | Material Datasheet |
| N42 | 1290-1330 (12.9-13.3) | ≥923 (≥11.6) | ≥955 (≥12) | 318-342 (40-43) | 0.10-0.124 | 0.65-0.80 | Material Datasheet |
| N45 | 1330-1370 (13.3-13.7) | ≥931 (≥11.7) | ≥955 (≥12) | 342-366 (43-46) | 0.10-0.124 | 0.65-0.80 | Material Datasheet |
| N48 | 1370-1400 (13.7-14.0) | ≥939 (≥11.8) | ≥955 (≥12) | 366-390 (46-49) | 0.10-0.124 | 0.65-0.80 | Material Datasheet |
| N50 | 1390-1430 (13.9-14.3) | ≥947 (≥11.9) | ≥955 (≥12) | 374-406 (47-51) | 0.10-0.124 | 0.65-0.80 | Material Datasheet |
| N52 | 1420-1460 (14.2-14.6) | ≥947 (≥11.9) | ≥955 (≥12) | 390-414 (49-52) | 0.10-0.124 | 0.65-0.80 | Material Datasheet |
| N54 | 1450-1490 (14.5-14.9) | ≥912 (≥11.5) | ≥955 (≥12) | 406-438 (51-55) | 0.10-0.124 | 0.65-0.80 | Material Datasheet |
| N56 | 1480-1520 (14.6-15.2) | ≥860 (≥10.8) | ≥876 (≥11) | 422-454 (52-57) | 0.10-0.124 | 0.65-0.80 | Material Datasheet |
| 35M | 1180-1230 (11.8-12.3) | ≥899 (≥11.3) | ≥1114 (≥14) | 263-287 (33-36) | 0.10-0.124 | 0.60-0.75 | Material Datasheet |
| 38M | 1230-1260 (12.3-12.6) | ≥923 (≥11.6) | ≥1114 (≥14) | 287-310 (36-39) | 0.10-0.124 | 0.60-0.75 | Grade PDF |
| 40M | 1260-1290 (12.6-12.9) | ≥947 (≥11.9) | ≥1114 (≥14) | 302-326 (38-41) | 0.10-0.124 | 0.60-0.75 | Material Datasheet |
| 42M | 1290-1330 (12.9-13.3) | ≥971 (≥12.2) | ≥1114 (≥14) | 318-342 (40-43) | 0.10-0.124 | 0.60-0.75 | Material Datasheet |
| 45M | 1330-1370 (13.3-13.7) | ≥1002 (≥12.6) | ≥1114 (≥14) | 342-366 (43-46) | 0.10-0.124 | 0.60-0.75 | Material Datasheet |
| 48M | 1370-1400 (13.7-14.0) | ≥1027 (≥12.9) | ≥1114 (≥14) | 366-390 (46-49) | 0.10-0.124 | 0.60-0.75 | Material Datasheet |
| 50M | 1390-1430 (13.9-14.3) | ≥1035 (≥13.0) | ≥1114 (≥14) | 374-406 (47-51) | 0.10-0.124 | 0.60-0.75 | Material Datasheet |
| 52M | 1420-1460 (14.2-14.6) | ≥995 (≥12.5) | ≥1114 (≥14) | 390-414 (49-52) | 0.10-0.124 | 0.60-0.75 | Material Datasheet |
| 54M | 1450-1490 (14.5-14.9) | ≥995 (≥12.5) | ≥1114 (≥14) | 406-438 (51-55) | 0.10-0.124 | 0.60-0.75 | Material Datasheet |
| 30H | 1080-1140 (10.8-11.4) | ≥827 (≥10.4) | ≥1353 (≥17) | 223-247 (28-31) | 0.09-0.120 | 0.55-0.70 | Material Datasheet |
| 33H | 1140-1180 (11.4-11.8) | ≥860 (≥10.8) | ≥1353 (≥17) | 247-271 (31-34) | 0.09-0.120 | 0.55-0.70 | Material Datasheet |
| 35H | 1180-1230 (11.8-12.3) | ≥899 (≥11.3) | ≥1353 (≥17) | 263-287 (33-36) | 0.09-0.120 | 0.55-0.70 | Grade PDF |
| 38H | 1230-1260 (12.3-12.6) | ≥923 (≥11.6) | ≥1353 (≥17) | 287-310 (36-39) | 0.09-0.120 | 0.55-0.70 | Material Datasheet |
| 40H | 1260-1290 (12.6-12.9) | ≥947 (≥11.9) | ≥1353 (≥17) | 302-326 (38-41) | 0.09-0.120 | 0.55-0.70 | Grade PDF |
| 42H | 1290-1330 (12.9-13.3) | ≥971 (≥12.2) | ≥1353 (≥17) | 318-342 (40-43) | 0.09-0.120 | 0.55-0.70 | Material Datasheet |
| 45H | 1330-1370 (13.3-13.7) | ≥1003 (≥12.6) | ≥1353 (≥17) | 342-366 (43-46) | 0.09-0.120 | 0.55-0.70 | Grade PDF |
| 48H | 1370-1400 (13.7-14.0) | ≥1035 (≥13.0) | ≥1353 (≥17) | 366-390 (46-49) | 0.09-0.120 | 0.55-0.70 | Grade PDF |
| 50H | 1390-1430 (13.9-14.3) | ≥1058 (≥13.3) | ≥1353 (≥17) | 374-406 (47-51) | 0.09-0.120 | 0.55-0.70 | Grade PDF |
| 52H | 1420-1460 (14.2-14.6) | ≥1074 (≥13.5) | ≥1353 (≥17) | 390-414 (49-52) | 0.09-0.120 | 0.55-0.70 | Grade PDF |
| 54H | 1450-1490 (14.5-14.9) | ≥1074 (≥13.5) | ≥1274 (≥16) | 406-438 (51-55) | 0.09-0.120 | 0.55-0.70 | Material Datasheet |
| 30SH | 1080-1140 (10.8-11.4) | ≥827 (≥10.4) | ≥1592 (≥20) | 223-247 (28-31) | 0.09-0.120 | 0.50-0.65 | Material Datasheet |
| 33SH | 1140-1180 (11.4-11.8) | ≥860 (≥10.8) | ≥1592 (≥20) | 247-271 (31-34) | 0.09-0.120 | 0.50-0.65 | Material Datasheet |
| 35SH | 1180-1230 (11.8-12.3) | ≥899 (≥11.3) | ≥1592 (≥20) | 263-287 (33-36) | 0.09-0.120 | 0.50-0.65 | Grade PDF |
| 38SH | 1230-1260 (12.3-12.6) | ≥923 (≥11.6) | ≥1592 (≥20) | 287-310 (36-39) | 0.09-0.120 | 0.50-0.65 | Grade PDF |
| 40SH | 1260-1290 (12.6-12.9) | ≥947 (≥11.9) | ≥1592 (≥20) | 302-326 (38-41) | 0.09-0.120 | 0.50-0.65 | Grade PDF |
| 42SH | 1290-1330 (12.9-13.3) | ≥971 (≥12.2) | ≥1592 (≥20) | 318-342 (40-43) | 0.09-0.120 | 0.50-0.65 | Grade PDF |
| N42SH-HRE | 1310-1330 (13.1-13.3) | ≥1020 (≥12.8) | ≥1671 (≥21.0) | 333-341 (42.0-43.0) | -0.125 | -0.600 | Grade PDF |
| 45SH | 1330-1370 (13.3-13.7) | ≥1003 (≥12.6) | ≥1592 (≥20) | 342-366 (43-46) | 0.09-0.120 | 0.50-0.65 | Grade PDF |
| 48SH | 1370-1400 (13.7-14.0) | ≥1035 (≥13.0) | ≥1592 (≥20) | 366-390 (46-49) | 0.09-0.120 | 0.50-0.65 | Grade PDF |
| 50SH | 1390-1430 (13.9-14.3) | ≥1058 (≥13.3) | ≥1592 (≥20) | 374-406 (47-51) | 0.09-0.120 | 0.50-0.65 | Grade PDF |
| 52SH | 1420-1460 (14.2-14.6) | ≥1074 (≥13.5) | ≥1512 (≥19) | 390-414 (49-52) | 0.09-0.120 | 0.50-0.65 | Material Datasheet |
| N54SH | 1460-1480 (14.6-14.8) | ≥1136 (≥14.3) | ≥1751 (≥22.0) | 413-421 (52.0-53.0) | -0.120 | -0.600 | Grade PDF |
| 28UH | 1040-1090 (10.4-10.9) | ≥780 (≥9.8) | ≥1990 (≥25) | 207-231 (26-29) | 0.09-0.110 | 0.50-0.60 | Grade PDF |
| 30UH | 1080-1140 (10.8-11.4) | ≥827 (≥10.4) | ≥1990 (≥25) | 223-247 (28-31) | 0.09-0.110 | 0.50-0.60 | Material Datasheet |
| 33UH | 1140-1180 (11.4-11.8) | ≥860 (≥10.8) | ≥1990 (≥25) | 247-271 (31-34) | 0.09-0.110 | 0.50-0.60 | Grade PDF |
| 35UH | 1180-1230 (11.8-12.3) | ≥899 (≥11.3) | ≥1990 (≥25) | 263-287 (33-36) | 0.09-0.110 | 0.50-0.60 | Grade PDF |
| 38UH | 1230-1260 (12.3-12.6) | ≥923 (≥11.6) | ≥1990 (≥25) | 287-310 (36-39) | 0.09-0.110 | 0.50-0.60 | Grade PDF |
| 40UH | 1260-1290 (12.6-12.9) | ≥947 (≥11.9) | ≥1990 (≥25) | 302-326 (38-41) | 0.09-0.110 | 0.50-0.60 | Grade PDF |
| 42UH | 1290-1330 (12.9-13.3) | ≥971 (≥12.2) | ≥1990 (≥25) | 318-342 (40-43) | 0.09-0.110 | 0.50-0.60 | Grade PDF |
| 45UH | 1330-1370 (13.3-13.7) | ≥1003 (≥12.6) | ≥1990 (≥25) | 342-366 (43-46) | 0.09-0.110 | 0.50-0.60 | Grade PDF |
| 48UH | 1360-1400 (13.6-14.0) | ≥1035 (≥13.0) | ≥1990 (≥25) | 358-390 (45-49) | 0.09-0.110 | 0.50-0.60 | Grade PDF |
| N52UH | 1440-1460 (14.4-14.6) | ≥1120 (≥14.1) | ≥2069 (≥26.0) | 402-410 (50.5-51.5) | -0.115 | -0.500 | Grade PDF |
| 28EH | 1040-1090 (10.4-10.9) | ≥780 (≥9.8) | ≥2388 (≥30) | 207-231 (26-29) | 0.09-0.110 | 0.45-0.55 | Material Datasheet |
| 30EH | 1080-1140 (10.8-11.4) | ≥827 (≥10.4) | ≥2388 (≥30) | 223-247 (28-31) | 0.09-0.110 | 0.45-0.55 | Grade PDF |
| 33EH | 1140-1180 (11.4-11.8) | ≥860 (≥10.8) | ≥2388 (≥30) | 247-271 (31-34) | 0.09-0.110 | 0.45-0.55 | Material Datasheet |
| 35EH | 1180-1230 (11.8-12.3) | ≥899 (≥11.3) | ≥2388 (≥30) | 263-287 (33-36) | 0.09-0.110 | 0.45-0.55 | Grade PDF |
| 38EH | 1230-1260 (12.3-12.6) | ≥923 (≥11.6) | ≥2388 (≥30) | 287-310 (36-39) | 0.09-0.110 | 0.45-0.55 | Grade PDF |
| 40EH | 1260-1290 (12.6-12.9) | ≥947 (≥11.9) | ≥2388 (≥30) | 302-326 (38-41) | 0.09-0.110 | 0.45-0.55 | Material Datasheet |
| 42EH | 1290-1330 (12.9-13.3) | ≥971 (≥12.2) | ≥2388 (≥30) | 318-342 (40-43) | 0.09-0.110 | 0.45-0.55 | Material Datasheet |
| 45EH | 1330-1370 (13.3-13.7) | ≥1003 (≥12.6) | ≥2308 (≥29) | 342-366 (43-46) | 0.09-0.110 | 0.45-0.55 | Material Datasheet |
| N45AH | 1340-1350 (13.4-13.5) | ≥1039 (≥13.1) | ≥2865 (≥36.0) | 342-350 (43.0-44.0) | -0.115 | -0.400 | Grade PDF |
| N50EH | 1410-1430 (14.1-14.3) | ≥1097 (≥13.8) | ≥2467 (≥31.0) | 385-392 (48.5-49.2) | -0.115 | -0.450 | Grade PDF |
| 28TH | 1040-1090 (10.4-10.9) | ≥780 (≥9.8) | ≥2786 (≥35) | 207-231 (26-29) | 0.09-0.110 | 0.40-0.50 | Grade PDF |
| 30TH | 1080-1140 (10.8-11.4) | ≥827 (≥10.4) | ≥2786 (≥35) | 223-247 (28-31) | 0.09-0.110 | 0.40-0.50 | Material Datasheet |
| 33TH | 1140-1180 (11.4-11.8) | ≥860 (≥10.8) | ≥2786 (≥35) | 247-271 (31-34) | 0.09-0.110 | 0.40-0.50 | Material Datasheet |
| 35TH | 1180-1230 (11.8-12.3) | ≥899 (≥11.3) | ≥2786 (≥35) | 263-287 (33-36) | 0.09-0.110 | 0.40-0.50 | Grade PDF |
| 38TH | 1230-1260 (12.3-12.6) | ≥923 (≥11.6) | ≥2786 (≥35) | 287-310 (36-39) | 0.09-0.110 | 0.40-0.50 | Grade PDF |
| 40TH | 1260-1290 (12.6-12.9) | ≥947 (≥11.9) | ≥2786 (≥35) | 302-326 (38-41) | 0.09-0.110 | 0.40-0.50 | Material Datasheet |
| 42TH | 1290-1330 (12.9-13.3) | ≥971 (≥12.2) | ≥2706 (≥34) | 318-342 (40-43) | 0.09-0.110 | 0.40-0.50 | Grade PDF |
| G-52H | 1430-1460 (14.3-14.6) | ≥1074 (≥13.5) | ≥1353 (≥17) | 398-422 (50-53) | 0.11-0.13 | 0.60-0.70 | Material Datasheet |
| G-55H | 1460-1500 (14.6-15.0) | ≥1098 (≥13.8) | ≥1353 (≥17) | 421-446 (53-56) | 0.11-0.13 | 0.60-0.70 | Material Datasheet |
| G-48SH | 1370-1400 (13.7-14.0) | ≥1035 (≥13.0) | ≥1600 (≥20) | 366-390 (46-49) | 0.11-0.13 | 0.60-0.65 | Material Datasheet |
| G-50SH | 1400-1430 (14.0-14.3) | ≥1058 (≥13.3) | ≥1600 (≥20) | 374-406 (47-51) | 0.11-0.13 | 0.60-0.65 | Material Datasheet |
| G-52SH | 1430-1460 (14.3-14.6) | ≥1074 (≥13.5) | ≥1600 (≥20) | 398-422 (50-53) | 0.11-0.13 | 0.60-0.65 | Material Datasheet |
| G-55SH | 1460-1500 (14.6-15.0) | ≥1098 (≥13.8) | ≥1600 (≥20) | 421-446 (53-56) | 0.11-0.13 | 0.60-0.65 | Material Datasheet |
| G-42UH | 1290-1330 (12.9-13.3) | ≥971 (≥12.2) | ≥1990 (≥25) | 318-342 (40-43) | 0.11-0.12 | 0.50-0.60 | Material Datasheet |
| G-45UH | 1330-1370 (13.3-13.7) | ≥1003 (≥12.6) | ≥1990 (≥25) | 342-366 (43-46) | 0.11-0.12 | 0.50-0.60 | Material Datasheet |
| G-48UH | 1370-1400 (13.7-14.0) | ≥1035 (≥13.0) | ≥1990 (≥25) | 366-390 (46-49) | 0.11-0.12 | 0.50-0.60 | Material Datasheet |
| G-50UH | 1400-1430 (14.0-14.3) | ≥1058 (≥13.3) | ≥1990 (≥25) | 374-406 (47-51) | 0.11-0.12 | 0.50-0.60 | Material Datasheet |
| G-52UH | 1430-1460 (14.3-14.6) | ≥1074 (≥13.5) | ≥1990 (≥25) | 398-422 (50-53) | 0.11-0.12 | 0.50-0.60 | Material Datasheet |
| G-33EH | 1140-1180 (11.4-11.8) | ≥860 (≥10.8) | ≥2388 (≥30) | 247-271 (31-34) | 0.10-0.12 | 0.45-0.55 | Material Datasheet |
| G-35EH | 1180-1230 (11.8-12.3) | ≥899 (≥11.3) | ≥2388 (≥30) | 263-287 (33-36) | 0.10-0.12 | 0.45-0.55 | Material Datasheet |
| G-38EH | 1230-1260 (12.3-12.6) | ≥923 (≥11.6) | ≥2388 (≥30) | 287-310 (36-39) | 0.10-0.12 | 0.45-0.55 | Material Datasheet |
| G-40EH | 1260-1290 (12.6-12.9) | ≥947 (≥11.9) | ≥2388 (≥30) | 302-326 (38-41) | 0.10-0.12 | 0.45-0.55 | Material Datasheet |
| G-42EH | 1290-1330 (12.9-13.3) | ≥971 (≥12.2) | ≥2388 (≥30) | 318-342 (40-43) | 0.10-0.12 | 0.45-0.55 | Material Datasheet |
| G-45EH | 1330-1370 (13.3-13.7) | ≥1003 (≥12.6) | ≥2388 (≥30) | 342-366 (43-46) | 0.10-0.12 | 0.45-0.55 | Material Datasheet |
| G-48EH | 1370-1400 (13.7-14.0) | ≥1035 (≥13.0) | ≥2388 (≥30) | 366-390 (46-49) | 0.10-0.12 | 0.45-0.55 | Material Datasheet |
| G-50EH | 1400-1430 (14.0-14.3) | ≥1035 (≥13.0) | ≥2388 (≥30) | 374-406 (47-51) | 0.10-0.12 | 0.45-0.55 | Material Datasheet |
| G-33TH | 1140-1180 (11.4-11.8) | ≥860 (≥10.8) | ≥2785 (≥35) | 247-271 (31-34) | 0.095-0.11 | 0.42-0.52 | Material Datasheet |
| G-35TH | 1180-1230 (11.8-12.3) | ≥899 (≥11.3) | ≥2785 (≥35) | 263-287 (33-36) | 0.095-0.11 | 0.42-0.52 | Material Datasheet |
| G-38TH | 1230-1260 (12.3-12.6) | ≥923 (≥11.6) | ≥2785 (≥35) | 287-310 (36-39) | 0.095-0.11 | 0.42-0.52 | Material Datasheet |
| G-40TH | 1260-1290 (12.6-12.9) | ≥947 (≥11.9) | ≥2785 (≥35) | 302-326 (38-41) | 0.095-0.11 | 0.42-0.52 | Material Datasheet |
| G-42TH | 1290-1330 (12.9-13.3) | ≥971 (≥12.2) | ≥2785 (≥35) | 318-342 (40-43) | 0.095-0.11 | 0.42-0.52 | Material Datasheet |
| G-45TH | 1330-1370 (13.3-13.7) | ≥1003 (≥12.6) | ≥2706 (≥34) | 342-366 (43-46) | 0.095-0.11 | 0.42-0.52 | Material Datasheet |
| G-54H | 1440-1470 (14.4-14.7) | ≥1074 (≥13.5) | ≥1353 (≥17) | 398-422 (50-53) | 0.09-0.12 | 0.55-0.70 | Material Datasheet |
| G-56H | 1460-1500 (14.6-15.0) | ≥1074 (≥13.5) | ≥1274 (≥16) | 406-438 (51-55) | 0.09-0.12 | 0.55-0.70 | Material Datasheet |
| G-54SH | 1440-1470 (14.4-14.7) | ≥1074 (≥13.5) | ≥1592 (≥20) | 398-422 (50-53) | 0.09-0.12 | 0.50-0.65 | Material Datasheet |
| G-56SH | 1460-1480 (14.6-14.8) | ≥1035 (≥13.0) | ≥1512 (≥19) | 406-438 (51-55) | 0.09-0.12 | 0.50-0.65 | Material Datasheet |
| G-54UH | 1430-1470 (14.3-14.7) | ≥1035 (≥13.0) | ≥1910 (≥24) | 390-422 (49-53) | 0.09-0.11 | 0.50-0.60 | Material Datasheet |
Reference values support initial selection; the approved drawing and agreed specification govern supply.
Grade PDF links open a dedicated grade file. Material Datasheet links open the general material reference.
Application & grade guidance6 reference rows
6 rows
No matching results. Clear the filter or ask for selection help.
| Application | Typical Spec | Why this material |
|---|---|---|
| EV / BLDC Motors | N42SH–N48SH | High torque density in a compact rotor |
| Sensors & Encoders | N35–N42 | Strong stable field in small packages |
| Magnetic Separators | N42–N52 | High field gradient for particle capture |
| Wind Generators | N42SH–N48SH | High energy with elevated-temperature margin |
| Acoustic Devices | N35–N45 | Compact driver magnetic circuits |
| Magnetic Couplings | N38SH–N42SH | Torque transfer through sealed barriers |
Reference values support initial selection; the approved drawing and agreed specification govern supply.
Grade families & temperature classes7 reference rows
7 rows
No matching results. Clear the filter or ask for selection help.
| Class | Typical reference temperature* | Selection logic | Typical applications |
|---|---|---|---|
| Standard N | ~80°C | Maximum energy density where thermal margin is modest | Speakers, fixtures, sensors, general industrial |
| M | ~100°C | Moderate added coercivity | Compact motors, actuators |
| H | ~120°C | Higher demagnetization margin | Industrial motors, generators |
| SH | ~150°C | Common automotive / traction-motor class | EV motors, wind generators, servos |
| UH | ~180°C | High-temperature compact magnetic circuits | EV/HEV, actuators, aerospace-related industrial systems |
| EH | ~200°C | Extreme thermal/demag margin | High-temperature motors and sensors |
| TH / AH | ~220–230°C class | Special high-coercivity families | Application-specific high-temperature designs |
Reference values support initial selection; the approved drawing and agreed specification govern supply.
Geometry, machining & tolerances4 reference rows
4 rows
No matching results. Clear the filter or ask for selection help.
| Process | Typical Tolerance | Notes |
|---|---|---|
| As-sintered | ±0.1 mm | Most economical for non-critical faces |
| Sliced / profile-ground | ±0.05 mm | Standard for blocks and arc dimensions |
| Centerless / surface ground | ±0.02 mm | Mating faces and press-fit diameters |
| Parallelism / perpendicularity | Per drawing | Confirmed during DFM review |
Reference values support initial selection; the approved drawing and agreed specification govern supply.
Coatings & corrosion protection4 reference rows
4 rows
No matching results. Clear the filter or ask for selection help.
| Coating | Typical Thickness | Reference Salt Spray | Typical Use |
|---|---|---|---|
| Ni-Cu-Ni | 15–20 µm | 48 h+ | General indoor / protected applications |
| Epoxy | 15–25 µm | 72 h+ | Humidity / marine-oriented protection |
| Zinc | 8–12 µm | 24 h+ | Cost-sensitive dry environments |
| Parylene C | 10–15 µm | 240 h+ | High-protection / specialty applications |
Reference values support initial selection; the approved drawing and agreed specification govern supply.
QUALITY & RELEASE
Agree the Evidence.
Verification follows the component’s function and the agreed inspection plan.
Magnetic performance
Review details
Agree on the measured property, test method, sample quantity and acceptance band for Br, Hcj, flux, pull force or torque.
Temperature verification
Review details
For H, SH, UH or EH selections, define the temperature exposure and the post-exposure magnetic acceptance criterion.
Coating and corrosion
Review details
Confirm coating system, thickness range, adhesion method and environmental test requirement before production release.
Dimensional release
Review details
Identify critical faces, datum scheme, flatness, chamfer and coating allowance so the inspection report matches the drawing.
PRODUCT QUESTIONS
Before You Send a Drawing.
Is N52 always the best choice?
No. The highest nominal energy product may not be the best choice once temperature, coercivity, cost, corrosion protection and working point are considered. We recommend selecting against the magnetic circuit and operating profile.
Can you supply high-temperature NdFeB?
High-temperature grades can be reviewed for the application. The suitable grade depends on the magnet temperature and required irreversible-loss margin; confirm the exact grade and limits during engineering review.
What should I send for a quotation?
A drawing, material or grade preference, magnetizing direction, operating temperature, environment, annual volume, first order quantity and any inspection or coating requirements.
CONTINUE EXPLORING
Related Magnetic Solutions.
materials
SmCo Magnets
Temperature-stable rare-earth magnets for demanding operating environments.
Explore Product
materials
Ferrite Magnets
Ceramic magnets for motors, magnetic circuits and volume production.
Explore Product
materials
AlNiCo Magnets
Cast and sintered magnets for stable flux and elevated-temperature applications.
Explore ProductFROM YOUR DRAWING TO PRODUCTION
Bring Your Design to Production.
Share your drawing. Define the next step.
Start a Technical Review
